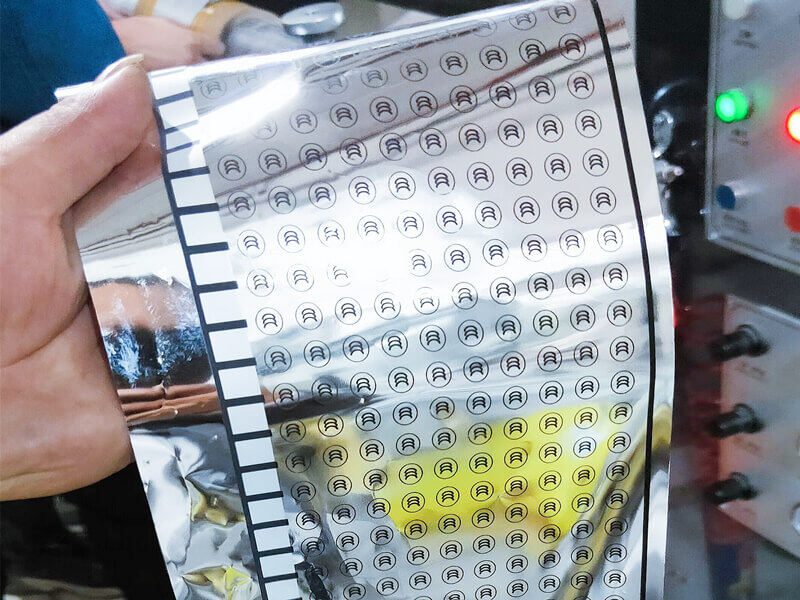

Applicable printing substrate：

breathable film, 15-100μm, CPP, 20-60μm. And other films with the same properties as above.

Printing color number::

six colors (color number can be increased or decreased).

Maximum width of substrate:

1400mm

Diameter of printing plate cylinder:

Ф120mm～Ф270mm

Maximum diameter of rewinding and unwinding:

Ф600mm

Inner diameter of rewinding and unwinding paper tube：

Ф76mm

Rewinding and unwinding shaft diameter:

Ф74mm (one more spare)

Machine speed:

20～220m/min

Printing speed：

20～200米

Registration accuracy：

±0.3mm

Automatic tension range：

3～20kgf

Tension control mode：

Four-stage floating roller tension control.

Registration accuracy：

±3%

Air source：

0.6Mpa

Imprinting force：

380kgf(full load)

Scraper pressure：

10～110kgf

Scraper movement：

±5mm

Drying method：

electric heating

Electricity for drying during electric heating：

22.5×6＝135kW(full load)

Main motor power：

15kW

Total machine power：

200kW for electric heating (full load)

Rack：

Frame structure

Machine weight：

10000kg

Machine dimensions：

14200(L)mm×3800 (W)mm×3100(H)mm

Machine color：

PANTONE 429C

Machine function：

Double station non-stop refueling
