MD TECH PE Breathable Cast Film Extrusion Line

FY-PE

●MD TECH PE Breathable Cast Film Extrusion Line-Introducing advanced Korean equipment technology combined with our patented technology.

Contact Us
Quick Inquiry

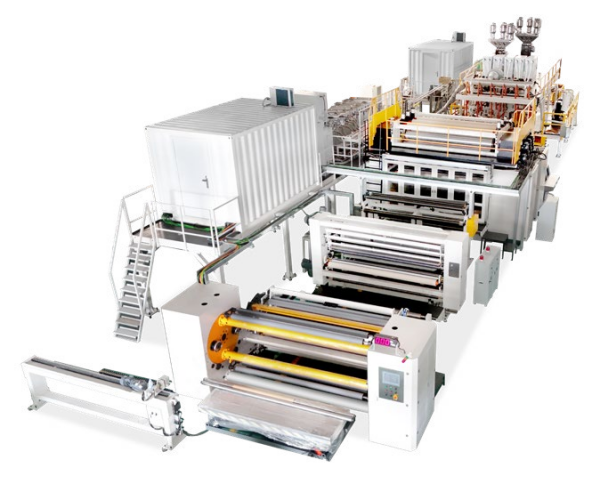

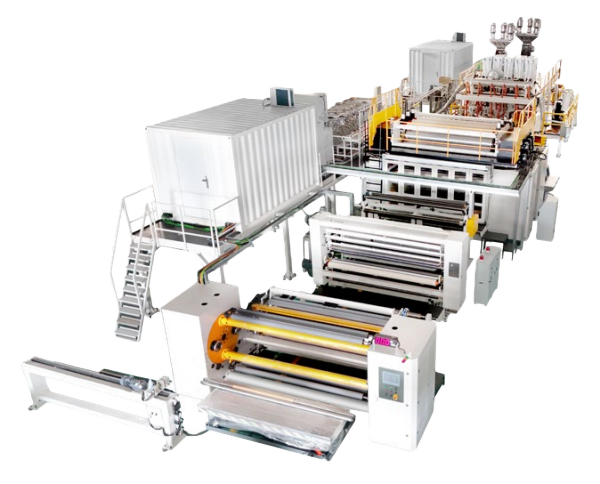

MD Technology PE Breathable Cast Film Extrusion Line

Description

FlyYou’s MD Technology PE Breathable Cast Film Extrusion Line is a cutting-edge solution co-developed by Chinese and Korean engineering teams, integrating core Korean MD equipment technology. Specifically optimized for the Asian market (including high-demand regions like India), this line realizes localized intelligent manufacturing of imported-grade equipment, balancing premium performance with cost-effectiveness. Equipped with an oil temperature controlled screw extrusion system, full servo MDO unit, and intelligent process control modules, it solves industry pain points such as uneven heating, high material waste, and unstable production—delivering consistent, high-quality PE breathable films for hygiene and medical applications. Adopting international brand parts and thickened wall panels, the line ensures low failure rates and long-term durability, while innovative cost-saving features (edge trim recycling, seamless roll change) maximize operational efficiency. Ideal for global hygiene manufacturers seeking to elevate production capacity with "Chinese prices, European-standard technology."



    1. Full Servo MDO Breathable Film Manufacturing Line


Width Range
1000-3800mm
Machine Speed
250m/min
Product Gsm
14-40g
Applicable Raw Materials
Breathable Compound
Min Online Slitting Size 70-80mm ultra-narrow cutting
Screw Heating and Cooling Method Oil temperature machine control
Winding Tpe
AB shaft turret winding unit
Machine Wall Panel
CNC machining
Machine Dimensions
26.5m L ×8.5m W ×5.5m H


Application

  • This MD technology PE breathable cast film extrusion line is designed for high-performance breathable film production, widely applied in:
    • Disposable hygiene products (baby diapers, sanitary napkins, adult incontinence pads)
    • Medical protective materials (surgical gown inner layers, medical bed sheets)
    • Hygiene backsheets meeting Asian market quality standards (compatible with local brand requirements)
    • Lightweight sanitary pouch for hygiene and medical industries.


Features

      • Sino-Korean Core Technology: Co-developed by Chinese and Korean engineers, integrating advanced MD technology for Asian market customization.
      • Efficient Oil Temperature Control: Screw extrusion system dynamically regulates friction heat, avoiding local overheating and energy waste, boosting production efficiency by 25%+.
      • Stable Full Servo MDO Unit: Hot oil temperature control ensures high-speed operation, with integrated safety film guiding for uniform air permeability and stable shrinkage rate.
      • Intelligent Defect Elimination: Servo traction winding with intelligent oscillation system realizes dynamic web guiding, eliminating film wrinkling and winding defects.
      • Cost-Saving Edge Trim Recycling: Online real-time crushing and reuse of edge trims, forming a closed-loop system that reduces raw material loss by 10%-15%.

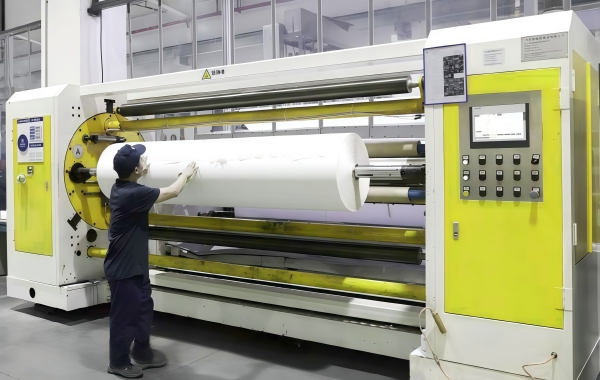

      • Seamless AB Shaft Winding: High-speed flipping technology enables non-stop roll change, minimizing transition waste and lowering production costs.
      • Precision Ultra-Narrow Slitting: 70-80mm high-speed online slitting enhances production efficiency and market response speed for small-batch orders.
      • Durable & Reliable: Adopts international brand parts (low failure rate) and high-quality thickened wall panels, ensuring long-term stable operation.
      • Global Certification: ISO and CE certified, meeting international quality standards for export to India, Southeast Asia, and global markets.


Elevate Your Global Hygiene Production with Patented Tech!

Contact our regional sales teams for a free demo, compliance guide tailored to your market, or customized quote. We offer on-site installation, operator training in local languages, and 1-year global warranty with localized service support.
